Schaltwandler, SMPS-Transformatoren
| Foto: | Hersteller-Teilenummer | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | Type | Applications | IntendedChipset | ChipsetManufacturer | Voltage-Primary | Voltage-Auxiliary | Voltage-Isolation | Inductance@Frequency | Frequency | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA5130.005NLTTRANSFORMER, CM FLYBACK, EP10 PL Pulse Electronics Power |
112 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5130XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.610 L x 0.512 W (15.50mm x 13.00mm) | 0.610 (15.50mm) | 0.610 L x 0.512 W (15.50mm x 13.00mm) |
|
|
PA5130.001NLTTRANSFORMER, CM FLYBACK, EP10 PL Pulse Electronics Power |
111 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5130XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.610 L x 0.512 W (15.50mm x 13.00mm) | 0.610 (15.50mm) | 0.610 L x 0.512 W (15.50mm x 13.00mm) |
|
|
PA5130.004NLTTRANSFORMER, CM FLYBACK, EP10 PL Pulse Electronics Power |
105 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5130XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.610 L x 0.512 W (15.50mm x 13.00mm) | 0.610 (15.50mm) | 0.610 L x 0.512 W (15.50mm x 13.00mm) |
|
|
PA5130.002NLTTRANSFORMER, CM FLYBACK, EP10 PL Pulse Electronics Power |
105 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5130XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.610 L x 0.512 W (15.50mm x 13.00mm) | 0.610 (15.50mm) | 0.610 L x 0.512 W (15.50mm x 13.00mm) |
.00xNL-Series.jpg)
|
PA3856.002NLXFMR,FORWARD,EEP13,SMT NPB Pulse Electronics Power |
473 | - |
RFQ |
Datenblatt |
Tray | - | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.695 W (14.50mm x 17.65mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
|
PA5100.001NLTTRANSFORMER, FORWARD, EP7 PLUS Pulse Electronics Power |
113 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5100XXXNL | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.535 L x 0.433 W (13.60mm x 11.00mm) | 0.610 (15.50mm) | |
|
|
PA5100.003NLTTRANSFORMER, FORWARD, EP7 PLUS Pulse Electronics Power |
105 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5100XXXNL | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.535 L x 0.433 W (13.60mm x 11.00mm) | 0.610 (15.50mm) | |
|
PA3856.004NLTTRANSFORMER FORWARD 128UH SMD Pulse Electronics Power |
900 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | EP13Plus | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.526 W (14.50mm x 13.36mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|

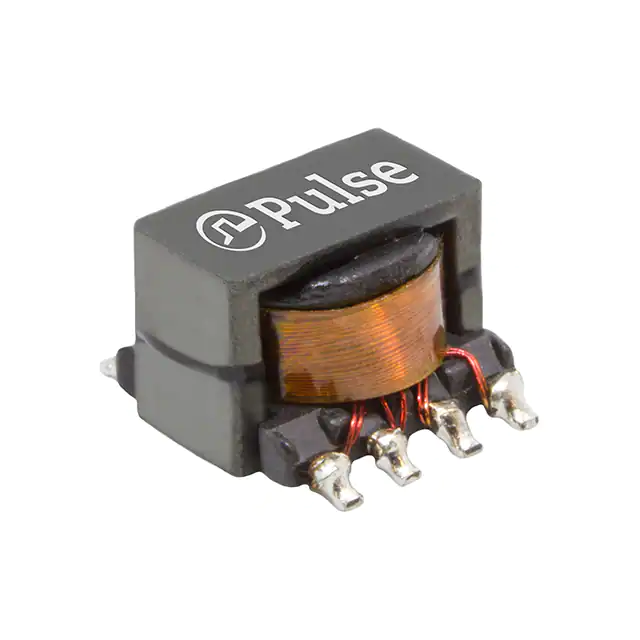

PA4470.001NLTTRANSFORMER FLYBACK DM 1.8W SMT Pulse Electronics Power |
659 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA4470 | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | Surface Mount | - | 0.236 (6.00mm) | 0.315 L x 0.374 W (8.00mm x 9.50mm) |
|
|
PA4470.005NLTTRANSFORMER FLYBACK DM 1.8W SMT Pulse Electronics Power |
323 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA4470 | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | Surface Mount | - | 0.236 (6.00mm) | 0.315 L x 0.374 W (8.00mm x 9.50mm) |
|
PA5000.002NLTTRANSF FRWD 20W 48V TO 5V Pulse Electronics Power |
115 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5000.XXXNL | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | - | 3000Vrms | 100µH @ 200kHz | 200kHz | -40°C ~ 130°C | Surface Mount | 0.531 L x 0.520 W (13.50mm x 13.20mm) | 0.650 (16.50mm) | 0.689 L x 0.531 W (17.50mm x 13.50mm) |
|
|
PA5000.003NLTTRANSF FRWD 20W 48V TO 12V Pulse Electronics Power |
115 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5000.XXXNL | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | - | 5000Vrms | 100µH @ 200kHz | 200kHz | -40°C ~ 130°C | Surface Mount | 0.531 L x 0.520 W (13.50mm x 13.20mm) | 0.650 (16.50mm) | 0.689 L x 0.531 W (17.50mm x 13.50mm) |
|
|

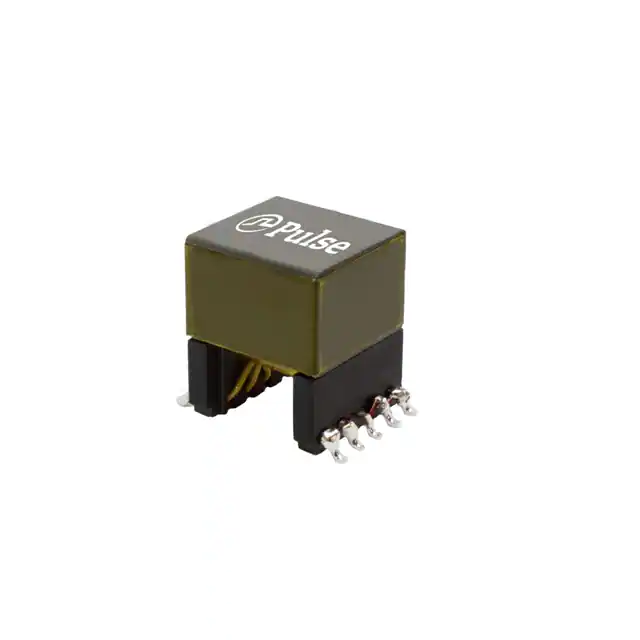

PA5111.002NLTTRANSF FLY 13W 48V TO 5V Pulse Electronics Power |
116 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5111.XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 75V | - | 3000Vrms | 80µH @ 200kHz | 200kHz | -40°C ~ 130°C | Surface Mount | 0.531 L x 0.520 W (13.50mm x 13.20mm) | 0.650 (16.50mm) | 0.689 L x 0.531 W (17.50mm x 13.50mm) |
|
|
PA5112.001NLTTRANSF FLY 24W 48V TO 3.3V Pulse Electronics Power |
115 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5112.XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 3000Vrms | 173µH @ 140kH | 140kHz | -40°C ~ 130°C | Surface Mount | 0.531 L x 0.520 W (13.50mm x 13.20mm) | 0.650 (16.50mm) | 0.689 L x 0.531 W (17.50mm x 13.50mm) |
|
|
PA5111.001NLTTRANSF FLY 13W 48V TO 3.3V Pulse Electronics Power |
2,685 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5111.XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 75V | - | 3000Vrms | 80µH @ 200kHz | 200kHz | -40°C ~ 130°C | Surface Mount | 0.531 L x 0.520 W (13.50mm x 13.20mm) | 0.650 (16.50mm) | 0.689 L x 0.531 W (17.50mm x 13.50mm) |
|
|
PA5112.002NLTTRANSF FLY 24W 48V TO 5V Pulse Electronics Power |
110 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5112.XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 3000Vrms | 160µH @ 140kHz | 140kHz | -40°C ~ 130°C | Surface Mount | 0.531 L x 0.520 W (13.50mm x 13.20mm) | 0.650 (16.50mm) | 0.689 L x 0.531 W (17.50mm x 13.50mm) |
|

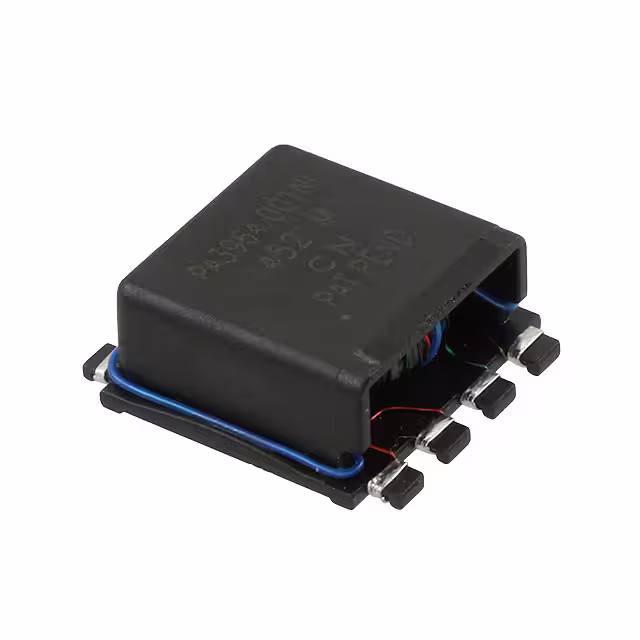

PA3964.001NLXFRMR AC FORWARD 7W Pulse Electronics Power |
105 | - |
RFQ |
Datenblatt |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | 0.614 L x 0.591 W (15.60mm x 15.00mm) | 0.291 (7.40mm) | 0.614 L x 0.650 W (15.60mm x 16.50mm) |
|
|
PA5131.005NLTTRANSFORMER, FORWARD, EP10 PLUS Pulse Electronics Power |
3,264 | - |
RFQ |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | PA5131XXXNL | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.610 L x 0.512 W (15.50mm x 13.00mm) | 0.610 (15.50mm) | |
|
PH0802CNLXFMR DC/DC CONV SMD Pulse Electronics Power |
350 | - |
RFQ |
Datenblatt |
Tray | PH08XXCNL | Obsolete | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 0.850 L x 0.970 W (21.59mm x 24.65mm) | 0.368 (9.35mm) | 0.850 L x 0.970 W (21.59mm x 24.65mm) |
|
|
PH0804CNLXFMR DC/DC CONV SMD Pulse Electronics Power |
290 | - |
RFQ |
Datenblatt |
Tray | PH08XXCNL | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 0.850 L x 0.970 W (21.59mm x 24.65mm) | 0.388 (9.85mm) | 0.850 L x 0.970 W (21.59mm x 24.65mm) |
