Optokoppler – Transistor-, Photovoltaik-Ausgang
| Foto: | Hersteller-Teilenummer | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-4562#320OPTOISO 5KV TRANS W/BASE 8SMD Broadcom Limited |
3,270 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | - | - | - | - | DC | Transistor with Base | 20V | 8mA | 1.3V | 12 mA | - | -40°C ~ 85°C | Surface Mount |
|
HCPL-4562#020OPTOISO 5KV TRANS W/BASE 8DIP Broadcom Limited |
3,024 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | - | - | - | - | DC | Transistor with Base | 20V | 8mA | 1.3V | 12 mA | - | -40°C ~ 85°C | Through Hole |
|
|
HCPL-4562#060OPTOISO 3.75KV TRANS W/BASE 8DIP Broadcom Limited |
3,311 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | - | - | - | - | DC | Transistor with Base | 20V | 8mA | 1.3V | 12 mA | - | -40°C ~ 85°C | Through Hole |
|
|
HCPL-4534#020OPTOISO 5KV 2CH TRANSISTOR 8DIP Broadcom Limited |
3,484 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 2 | 5000Vrms | 15% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
HCPL-2730#300OPTOISO 3.75KV 2CH DARL 8-DIP GW Broadcom Limited |
3,487 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 2 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 5µs, 10µs | - | DC | Darlington | 7V | 60mA | 1.4V | 12 mA | 100mV | 0°C ~ 70°C | Surface Mount |
|
|
HCPL-4701#320OPTOISO 5KV DARL 8-DIP GULL WING Broadcom Limited |
2,985 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | 0°C ~ 70°C | Surface Mount |
|
|
HCPL-2730#020OPTOISO 5KV 2CH DARLINGTON 8-DIP Broadcom Limited |
2,461 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 2 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 5µs, 10µs | - | DC | Darlington | 7V | 60mA | 1.4V | 12 mA | 100mV | 0°C ~ 70°C | Through Hole |
|
HCPL-0500#060OPTOISO 3.75KV TRANS W/BASE 8SO Broadcom Limited |
3,351 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 5% @ 16mA | - | 200ns, 1.3µs | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-2730#320OPTOISOLTR 5KV 2CH DARL 8-DIP GW Broadcom Limited |
3,373 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 2 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 5µs, 10µs | - | DC | Darlington | 7V | 60mA | 1.4V | 12 mA | 100mV | 0°C ~ 70°C | Surface Mount |
|
|
HCPL-4701#360OPTOISOLATOR 3.75KV DARL 8DIP GW Broadcom Limited |
2,811 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | 0°C ~ 70°C | Surface Mount |
|
|
HCPL-4701#060OPTOISO 3.75KV DARLINGTON 8-DIP Broadcom Limited |
3,936 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | 0°C ~ 70°C | Through Hole |
|
|
HCPL-4701#020OPTOISOLTR 5KV DARLINGTON 8-DIP Broadcom Limited |
3,246 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | 0°C ~ 70°C | Through Hole |
|
4N46-300EOPTOISO 3.75KV DARL W/BASE 6SMD Broadcom Limited |
2,422 | - |
RFQ |
Datenblatt |
Tube | - | Obsolete | 1 | 3750Vrms | 200% @ 10mA | 1000% @ 10mA | 5µs, 150µs | - | DC | Darlington with Base | 20V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|

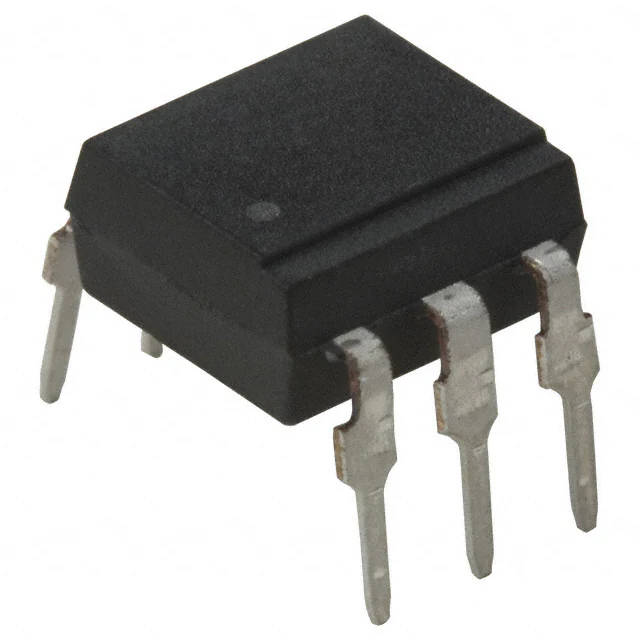

4N46#060OPTOISO 3.75KV DARL W/BASE 6DIP Broadcom Limited |
2,372 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 200% @ 10mA | 1000% @ 10mA | 5µs, 150µs | - | DC | Darlington with Base | 20V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Through Hole |
|
|
HCPL-3700-320OPTOISO 5KV DARL 8-DIP GULL WING Broadcom Limited |
2,595 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | - | - | 4µs, 10µs | 20µs, 0.3µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-J454#300OPTOISO 3.75KV TRANSISTOR 8SMD Broadcom Limited |
3,857 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 19% @ 16mA | 60% @ 16mA | 500ns, 800ns | - | DC | Transistor | 20V | 8mA | 1.59V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-0453#060OPTOISOLATOR 3.75KV TRANS 8-SO Broadcom Limited |
3,500 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCNR201#350OPTOISO 5KV LINEAR PHVOLT 8SMD Broadcom Limited |
3,931 | - |
RFQ |
Datenblatt |
Tube | - | Obsolete | 1 | 5000Vrms | 0.36% @ 10mA | 0.72% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
.jpg)
|
HCNR200#050OPTOISO 5KV LINEAR PHVOLT 8DIP Broadcom Limited |
3,155 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 0.25% @ 10mA | 0.75% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
HCPL-0700#060OPTOISO 3.75KV DARL W/BASE 8SOIC Broadcom Limited |
3,980 | - |
RFQ |
Datenblatt |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
