Gleichtaktdrosseln

Hersteller-Teilenummer	Verfügbarkeit	Preis	Menge	Datenblatt	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
B82732R2901B030 CMC 27MH 900MA 2LN TH EPCOS - TDK Electronics	3,552	-	RFQ	Datenblatt	Tray	B82732	Active	Power Line	2	-	27 mH @ 10 kHz	900mA	750mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.650 W (24.00mm x 16.50mm)	0.925 (23.50mm)
B82726E6213A040 CMC 1.5MH 21A 2LN TH EPCOS - TDK Electronics	731	-	RFQ	Datenblatt	Tray	B82726	Active	Power Line	2	-	1.5 mH @ 10 kHz	21A	2.8mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	1.890 Dia x 1.024 L (48.00mm x 26.00mm)	1.772 (45.00mm)
B82726S2163N030 CMC 2.2MH 16A 2LN TH EPCOS - TDK Electronics	3,916	-	RFQ	Datenblatt	Tray	B82726	Active	Power Line	2	-	2.2 mH @ 10 kHz	16A	7.1mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.969 L x 0.906 W (50.00mm x 23.00mm)	1.929 (49.00mm)
B82727E6503A040 CMC 570UH 50A 2LN TH EPCOS - TDK Electronics	2,319	-	RFQ	Datenblatt	Tray	B82727	Active	Power Line	2	-	570 µH @ 100 kHz	50A	1mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	2.559 L x 1.378 W (65.00mm x 35.00mm)	2.402 (61.00mm)

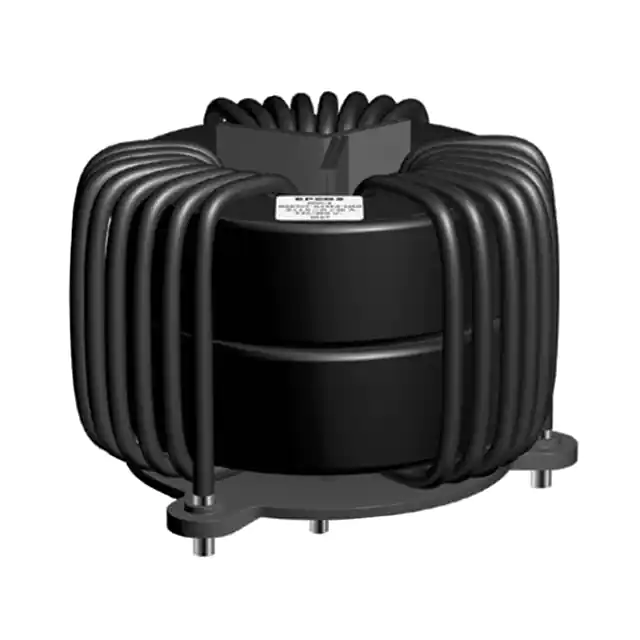

B82747S4423N020 CMC 1.5MH 42A 3LN TH EPCOS - TDK Electronics	176	-	RFQ	Datenblatt	Tray	B82747	Active	Power Line	3	-	1.5 mH @ 10 kHz	42A	2.6mOhm (Typ)	-	440/250V	-40°C ~ 125°C	-	-	-	Through Hole	2.677 Dia (68.00mm)	1.299 (33.00mm)
B82793C0474N215 CMC 470UH 700MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	3,762	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82793	Active	Signal Line	2	-	470 µH @ 100 kHz	700mA	170mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.189 (4.80mm)
B82793C0225N265 CMC 2.2MH 500MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	3,395	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82793	Active	Signal Line	2	-	2.2 mH @ 100 kHz	500mA	400mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.189 (4.80mm)
B82793C0502N201 CMC 5UH 1.2A 2LN SMD AEC-Q200 EPCOS - TDK Electronics	3,688	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82793	Active	Signal Line	2	-	5 µH @ 100 kHz	1.2A	60mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.189 (4.80mm)
B82793C0513N201 CMC 51UH 800MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	2,254	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82793	Active	Signal Line	2	-	51 µH @ 100 kHz	800mA	140mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.189 (4.80mm)
B82793C0476N265 CMC 47MH 100MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	2,207	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82793	Active	Signal Line	2	-	47 mH @ 10 kHz	100mA	3.7Ohm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.189 (4.80mm)
B82790C0105N240 CMC 1MH 500MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	3,158	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82790	Not For New Designs	Signal Line	2	-	1 mH @ 100 kHz	500mA	170mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.205 (5.20mm)

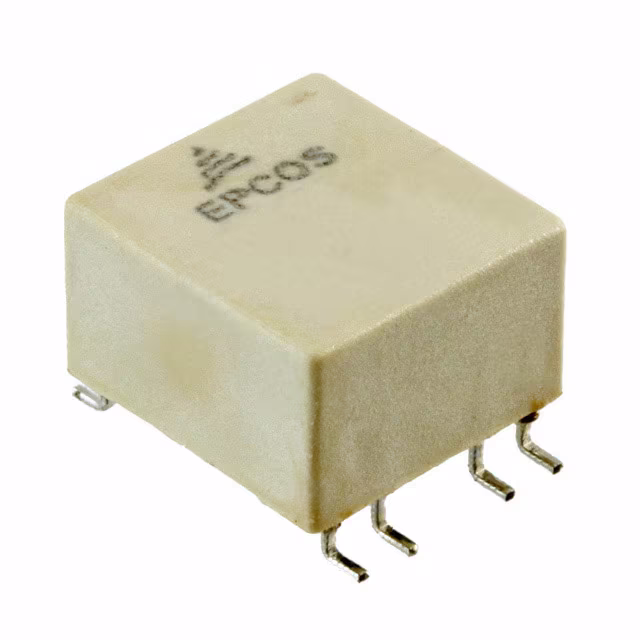

B82720S2301N040 CMC 12MH 300MA 2LN SMD EPCOS - TDK Electronics	3,046	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82720	Active	Power Line	2	-	12 mH @ 10 kHz	300mA	1.1Ohm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.524 W (14.50mm x 13.30mm)	0.421 (10.70mm)

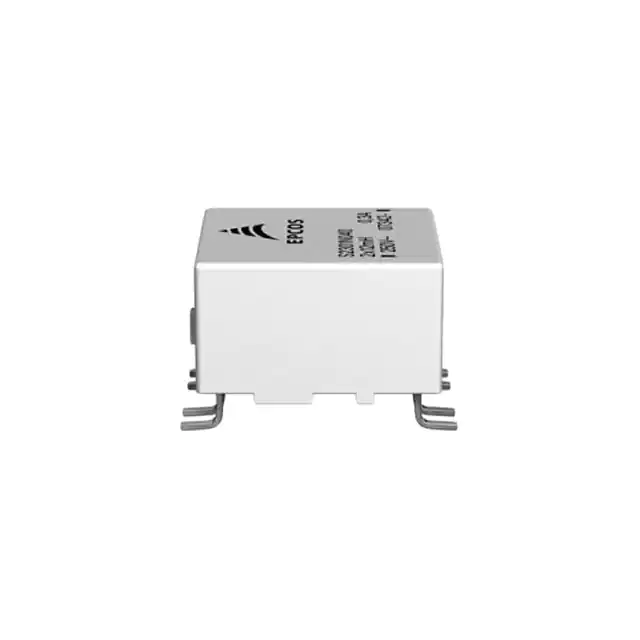

B82720S2601N040 CMC 4.4MH 600MA 2LN SMD EPCOS - TDK Electronics	3,084	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82720	Active	Power Line	2	-	4.4 mH @ 10 kHz	600mA	400mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.524 W (14.50mm x 13.30mm)	0.421 (10.70mm)
B82792C2475N365 CMC 4.7MH 300MA 4LN SMD EPCOS - TDK Electronics	3,508	-	RFQ	Datenblatt	Tape & Reel (TR),Cut Tape (CT)	B82792	Active	Signal Line	4	-	4.7 mH @ 10 kHz	300mA	700mOhm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.453 L x 0.413 W (11.50mm x 10.50mm)	0.287 (7.30mm)
B82721A2122N020 CMC 6.8MH 1.2A 2LN TH EPCOS - TDK Electronics	3,172	-	RFQ	Datenblatt	Tray	B82721	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.2A	280mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)

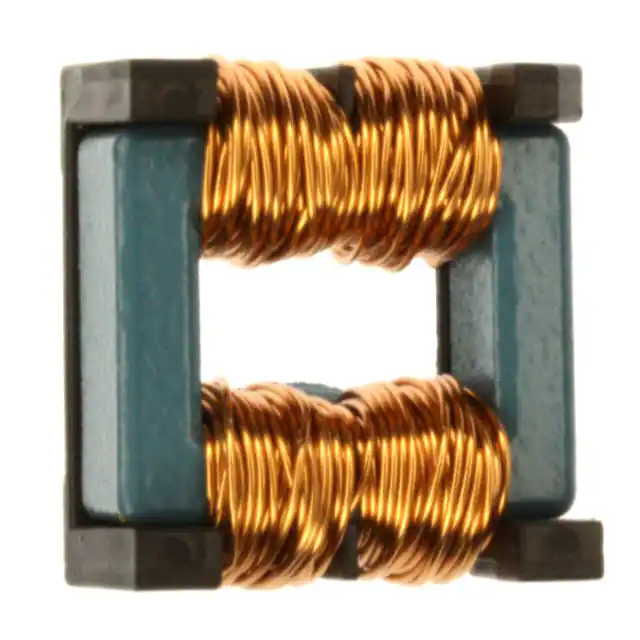

B82733F2192B001 CMC 15MH 1.9A 2LN TH EPCOS - TDK Electronics	3,885	-	RFQ	Datenblatt	Tray	B82733	Active	Power Line	2	-	15 mH @ 10 kHz	1.9A	279mOhm (Typ)	-	300V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)
B82721K2701N020 CMC 10MH 700MA 2LN TH EPCOS - TDK Electronics	3,909	-	RFQ	Datenblatt	Tray	B82721	Active	Power Line	2	-	10 mH @ 10 kHz	700mA	550mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
B82721A2152N001 CMC 3.3MH 1.5A 2LN TH EPCOS - TDK Electronics	3,893	-	RFQ	Datenblatt	Tray	B82721	Active	Power Line	2	-	3.3 mH @ 10 kHz	1.5A	180mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)
B82721A2401N020 CMC 39MH 400MA 2LN TH EPCOS - TDK Electronics	3,735	-	RFQ	Datenblatt	Tray	B82721	Active	Power Line	2	-	39 mH @ 10 kHz	400mA	2Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)
B82721K2152N001 CMC 3.3MH 1.5A 2LN TH EPCOS - TDK Electronics	3,785	-	RFQ	Datenblatt	Tray	B82721	Active	Power Line	2	-	3.3 mH @ 10 kHz	1.5A	180mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
