Chip-Widerstände (Oberflächenmontage)

Hersteller-Teilenummer	Verfügbarkeit	Preis	Menge	Datenblatt	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
LVM12FTR030E-TR RES 0.03 OHM 1% 1/2W 1206 Ohmite	10,000	-	RFQ	Datenblatt	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	LVM	Active	30 mOhms	±1%	0.5W, 1/2W	Metal Foil	Current Sense	±100ppm/°C	-55°C ~ 155°C	-	0.120 L x 0.061 W (3.05mm x 1.55mm)	0.028 (0.70mm)
FC4L76R025FER CURRENT SENSE CHIP 1% 0.025 OHM Ohmite	2,486	-	RFQ	Datenblatt	Wide 3015 (7638 Metric), 1530	Tape & Reel (TR),Cut Tape (CT)	FC4L	Active	25 mOhms	±1%	3W	Metal Foil	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 155°C	-	0.150 L x 0.299 W (3.80mm x 7.60mm)	0.031 (0.80mm)
LVT04R0150FER RES 0.015 OHM 1% 1/3W 0402 Ohmite	17,627	-	RFQ	Datenblatt	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LVT	Active	15 mOhms	±1%	0.333W, 1/3W	Metal Element	Current Sense	±100ppm/°C	-55°C ~ 155°C	-	0.039 L x 0.022 W (1.00mm x 0.55mm)	0.014 (0.35mm)
LVM06FTR050E-TR RES 0.05 OHM 1% 1/8W 0603 Ohmite	6,015	-	RFQ	Datenblatt	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	LVM	Active	50 mOhms	±1%	0.125W, 1/8W	Metal Foil	Current Sense	±100ppm/°C	-55°C ~ 155°C	-	0.061 L x 0.033 W (1.55mm x 0.85mm)	0.020 (0.50mm)
LVM06FTR100E-TR RES 0.1 OHM 1% 1/8W 0603 Ohmite	5,540	-	RFQ	Datenblatt	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	LVM	Active	100 mOhms	±1%	0.125W, 1/8W	Metal Foil	Current Sense	±100ppm/°C	-55°C ~ 155°C	-	0.061 L x 0.033 W (1.55mm x 0.85mm)	0.020 (0.50mm)
FC4L90R010FER CURRENT SENSE CHIP 1% 0.010 OHM Ohmite	4,957	-	RFQ	Datenblatt	Wide 3518 (9045 Metric), 1835	Tape & Reel (TR),Cut Tape (CT)	FC4L	Active	10 mOhms	±1%	4W	Metal Foil	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 155°C	-	0.177 L x 0.354 W (4.50mm x 9.00mm)	0.031 (0.80mm)
LVT04R0030GER RES 0.003 OHM 2% 1/3W 0402 Ohmite	12,140	-	RFQ	Datenblatt	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LVT	Active	3 mOhms	±2%	0.333W, 1/3W	Metal Element	Current Sense	±150ppm/°C	-55°C ~ 155°C	-	0.039 L x 0.022 W (1.00mm x 0.55mm)	0.014 (0.35mm)
LVT04R0025HER RES 0.0025 OHM 3% 1/3W 0402 Ohmite	10,466	-	RFQ	Datenblatt	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LVT	Active	2.5 mOhms	±3%	0.333W, 1/3W	Metal Element	Current Sense	±150ppm/°C	-55°C ~ 155°C	-	0.039 L x 0.022 W (1.00mm x 0.55mm)	0.014 (0.35mm)
MCS1320R010FER RES 10M OHM 1% 3/4W 0805 Ohmite	37,189	-	RFQ	Datenblatt	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	MCS	Active	10 mOhms	±1%	0.75W, 3/4W	Metal Element	Current Sense, Flame Retardant Coating, Safety	±50ppm/°C	-55°C ~ 150°C	-	0.083 L x 0.053 W (2.10mm x 1.35mm)	0.028 (0.70mm)
MCS1320R005FER RES 5M OHM 1% 3/4W 0805 Ohmite	25,008	-	RFQ	Datenblatt	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	MCS	Active	5 mOhms	±1%	0.75W, 3/4W	Metal Element	Current Sense, Flame Retardant Coating, Safety	±100ppm/°C	-55°C ~ 150°C	-	0.083 L x 0.053 W (2.10mm x 1.35mm)	0.028 (0.70mm)
FC4TR015FER RES 0.015 OHM 1% 1/2W 1206 Ohmite	16,002	-	RFQ	Datenblatt	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	FC4T	Active	15 mOhms	±1%	0.5W, 1/2W	Metal Foil	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.031 (0.80mm)

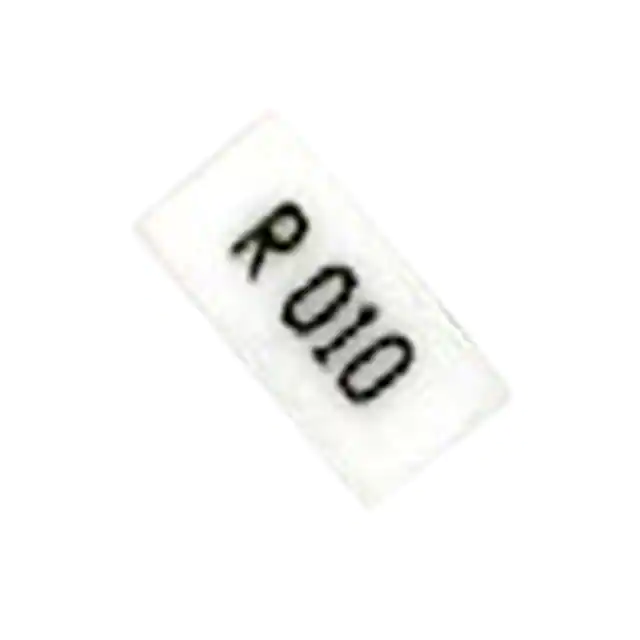

FC4TR010FER RES 0.01 OHM 1% 1/2W 1206 Ohmite	10,620	-	RFQ	Datenblatt	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	FC4T	Active	10 mOhms	±1%	0.5W, 1/2W	Metal Foil	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.031 (0.80mm)
FC4TR100FER RES 0.1 OHM 1% 1/2W 1206 Ohmite	19,592	-	RFQ	Datenblatt	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	FC4T	Active	100 mOhms	±1%	0.5W, 1/2W	Metal Foil	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.031 (0.80mm)
FC4TR050FER RES 0.05 OHM 1% 1/2W 1206 Ohmite	7,266	-	RFQ	Datenblatt	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	FC4T	Active	50 mOhms	±1%	0.5W, 1/2W	Metal Foil	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.031 (0.80mm)
RW5S0FA10K0JE RES SMD 10K OHM 5% 5W L BEND Ohmite	1,992	-	RFQ	Datenblatt	SMD, L-Bend	Bulk	RW	Active	10 kOhms	±5%	5W	Wirewound	-	±20ppm/°C	-55°C ~ 155°C	-	0.806 L x 0.365 W (20.47mm x 9.27mm)	0.406 (10.31mm)
RW2S0DA1R00JET RES SMD 1 OHM 5% 2W J LEAD Ohmite	104	-	RFQ	Datenblatt	4524 J-Lead	Tape & Reel (TR),Cut Tape (CT),Bulk	RW	Active	1 Ohms	±5%	2W	Wirewound	Current Sense	±50ppm/°C	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW3R0DB1R00JET RES SMD 1 OHM 5% 3W J LEAD Ohmite	2,058	-	RFQ	Datenblatt	6327 J-Lead	Tape & Reel (TR)	RW	Active	1 Ohms	±5%	3W	Wirewound	Current Sense	±50ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RW3R0DB10R0JET RES SMD 10 OHM 5% 3W J LEAD Ohmite	2,000	-	RFQ	Datenblatt	6327 J-Lead	Tape & Reel (TR)	RW	Active	10 Ohms	±5%	3W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RW3R0DB5R00JET RES SMD 5 OHM 5% 3W J LEAD Ohmite	2,995	-	RFQ	Datenblatt	6327 J-Lead	Tape & Reel (TR),Cut Tape (CT)	RW	Active	5 Ohms	±5%	3W	Wirewound	Current Sense	±50ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RW2R0DAR100JET RES 0.1 OHM 5% 2W J LEAD Ohmite	23,000	-	RFQ	Datenblatt	4524 J-Lead	Tape & Reel (TR)	RW	Active	100 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
