Chip-Widerstände (Oberflächenmontage)

Hersteller-Teilenummer	Verfügbarkeit	Preis	Menge	Datenblatt	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)

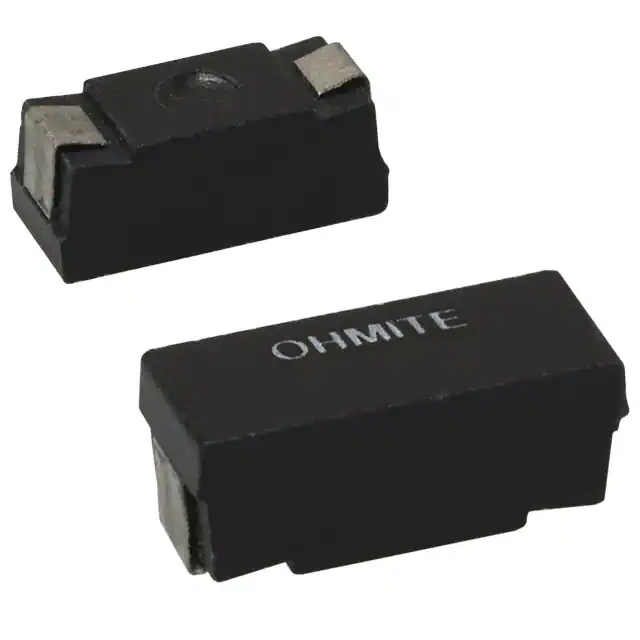

RC0S2CA68R0JE RES SMD 68 OHM 5% 1/4W J LEAD Ohmite	2,293	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RC	Active	68 Ohms	±5%	0.25W, 1/4W	Carbon Composition	Pulse Withstanding	±400ppm/°C	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RC0S2CA7R50JE RES SMD 7.5 OHM 5% 1/4W J LEAD Ohmite	2,511	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RC	Active	7.5 Ohms	±5%	0.25W, 1/4W	Carbon Composition	Pulse Withstanding	±400ppm/°C	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)

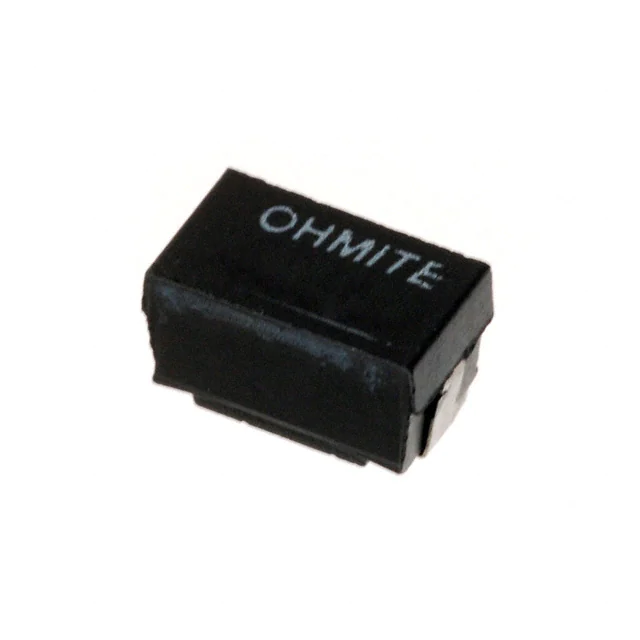

RW2S0CBR020J RES 0.02 OHM 5% 2W J LEAD Ohmite	2,281	-	RFQ	Datenblatt	4122 J-Lead	Bulk	RW	Active	20 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)
RW2S0CBR030J RES 0.03 OHM 5% 2W J LEAD Ohmite	2,543	-	RFQ	Datenblatt	4122 J-Lead	Bulk	RW	Active	30 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)
RW2S0CBR050J RES 0.05 OHM 5% 2W J LEAD Ohmite	3,529	-	RFQ	Datenblatt	4122 J-Lead	Bulk,Bulk	RW	Active	50 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)
RW2S0DAR005F RES 0.005 OHM 1% 2W J LEAD Ohmite	3,043	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	5 mOhms	±1%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2S0DAR010F RES 0.01 OHM 1% 2W J LEAD Ohmite	2,099	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	10 mOhms	±1%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)

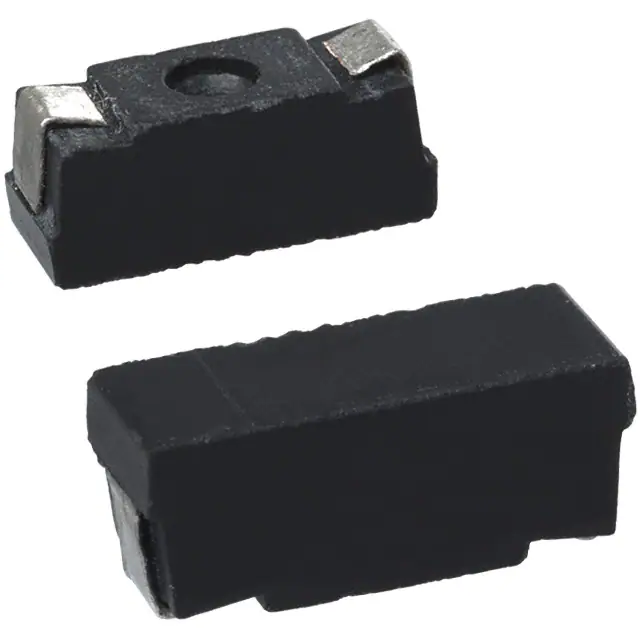

RW1S5CAR040J RES 0.04 OHM 5% 1.5W J LEAD Ohmite	3,617	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RW	Active	40 mOhms	±5%	1.5W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)

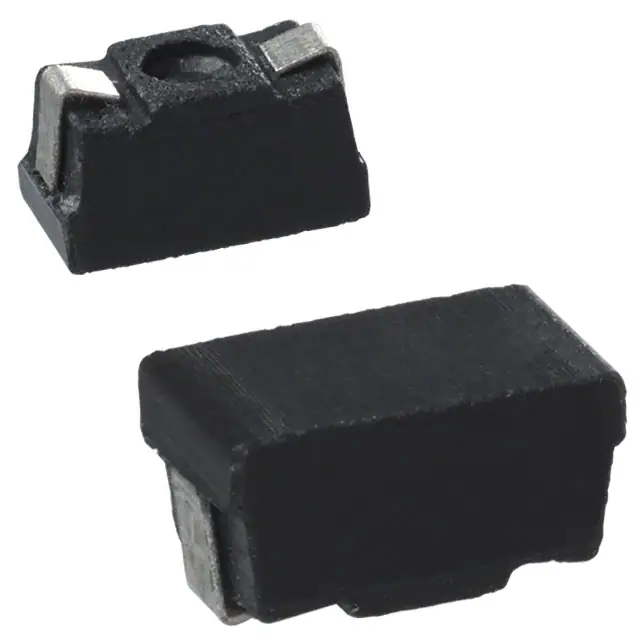

RW1S0BAR005J RES 0.005 OHM 5% 1W J LEAD Ohmite	3,898	-	RFQ	Datenblatt	2512 J-Lead	Bulk	RW	Active	5 mOhms	±5%	1W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
RW3R0DBR050J RES 0.05 OHM 5% 3W J LEAD Ohmite	2,681	-	RFQ	Datenblatt	6327 J-Lead	Bulk	RW	Active	50 mOhms	±5%	3W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RC0S2CA6R80KE CA SMD, 6.80 OHMS 10% Ohmite	2,843	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RC	Active	6.8 Ohms	±10%	0.25W, 1/4W	Carbon Composition	Pulse Withstanding	±400ppm/°C	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RC0S2CA470RKE CA SMD, 470 OHMS, 10% Ohmite	3,191	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RC	Active	470 Ohms	±10%	0.25W, 1/4W	Carbon Composition	Pulse Withstanding	±400ppm/°C	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RC0S2CA68R0KE CA SMD, 68.0 OHMS, 10% Ohmite	3,424	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RC	Active	68 Ohms	±10%	0.25W, 1/4W	Carbon Composition	Pulse Withstanding	±400ppm/°C	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RC0S2CA15R0KE CA SMD 15 OHMS 10% Ohmite	3,546	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RC	Active	15 Ohms	±10%	0.25W, 1/4W	Carbon Composition	Pulse Withstanding	±400ppm/°C	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RC0S2CA1K00KE CA SMD, 1 KOHMS, 10% Ohmite	3,459	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RC	Active	1 kOhms	±10%	0.25W, 1/4W	Carbon Composition	Pulse Withstanding	±400ppm/°C	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)

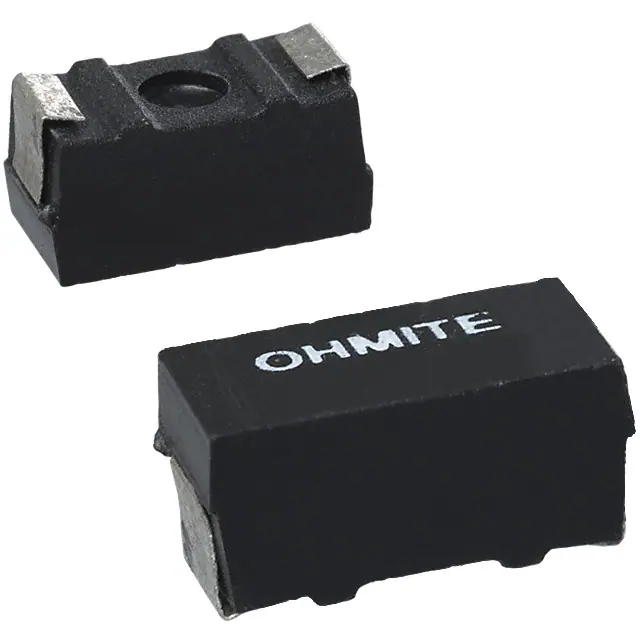

RW2R0DAR010J RES 0.01 OHM 5% 2W J LEAD Ohmite	2,661	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	10 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2R0CBR100J RES 0.1 OHM 5% 2W J LEAD Ohmite	2,598	-	RFQ	Datenblatt	4122 J-Lead	Bulk	RW	Active	100 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)
RW2R0DA1R00J RES SMD 1 OHM 5% 2W J LEAD Ohmite	3,483	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	1 Ohms	±5%	2W	Wirewound	Current Sense	±50ppm/°C	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2S0CBR150J RES 0.15 OHM 5% 2W J LEAD Ohmite	2,380	-	RFQ	Datenblatt	4122 J-Lead	Bulk,Bulk	RW	Active	150 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)
RW1S0BAR100JE RES 0.1 OHM 5% 1W J LEAD Ohmite	3,941	-	RFQ	Datenblatt	2512 J-Lead	Bulk	RW	Active	100 mOhms	±5%	1W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
