Chip-Widerstände (Oberflächenmontage)

Hersteller-Teilenummer	Verfügbarkeit	Preis	Menge	Datenblatt	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)

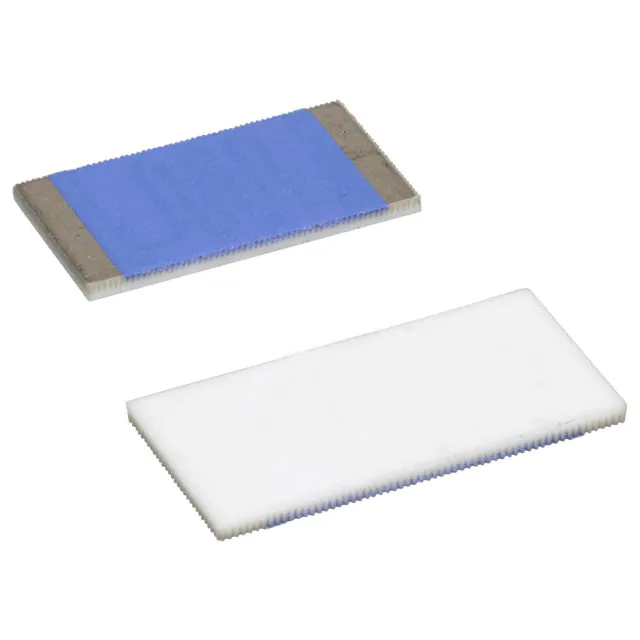

MC102822504JE RES SMD 2.5M OHM 5% 1.5W 5025 Ohmite	2,715	-	RFQ	Datenblatt	Nonstandard	Bulk	Macrochip	Active	2.5 MOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
MC102827503JE RES SMD 750K OHM 5% 1.5W 5025 Ohmite	3,064	-	RFQ	Datenblatt	Nonstandard	Bulk	Macrochip	Active	750 kOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
RW1S5CAR030JE RES 0.03 OHM 5% 1.5W J LEAD Ohmite	2,516	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RW	Active	30 mOhms	±5%	1.5W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RW1S5CAR005JE RES 0.005 OHM 5% 1.5W J LEAD Ohmite	3,767	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RW	Active	5 mOhms	±5%	1.5W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RW1S5CAR010JE RES 0.01 OHM 5% 1.5W J LEAD Ohmite	3,286	-	RFQ	Datenblatt	3916 J-Lead	Bulk	RW	Active	10 mOhms	±5%	1.5W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RW1S5CAR040JE RES 0.04 OHM 5% 1.5W J LEAD Ohmite	2,281	-	RFQ	Datenblatt	3916 J-Lead	Bulk,Bulk	RW	Active	40 mOhms	±5%	1.5W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.394 L x 0.159 W (10.01mm x 4.04mm)	0.164 (4.17mm)
RW2S0DAR005JE RES 0.005 OHM 5% 2W J LEAD Ohmite	116	-	RFQ	Datenblatt	4524 J-Lead	Bulk,Bulk	RW	Active	5 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2S0DAR010JE RES 0.01 OHM 5% 2W J LEAD Ohmite	2,444	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	10 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2S0DAR050JE RES 0.05 OHM 5% 2W J LEAD Ohmite	2,170	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	50 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2R0DAR005JE RES 0.005 OHM 5% 2W J LEAD Ohmite	2,657	-	RFQ	Datenblatt	4524 J-Lead	Bulk,Bulk	RW	Active	5 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2R0DAR015JE RES 0.015 OHM 5% 2W J LEAD Ohmite	3,182	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	15 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2R0DAR020JE RES 0.02 OHM 5% 2W J LEAD Ohmite	3,871	-	RFQ	Datenblatt	4524 J-Lead	Bulk,Bulk	RW	Active	20 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2R0DAR025JE RES 0.025 OHM 5% 2W J LEAD Ohmite	3,193	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	25 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2R0DAR030JE RES 0.03 OHM 5% 2W J LEAD Ohmite	2,417	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	30 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2R0DAR050JE RES 0.05 OHM 5% 2W J LEAD Ohmite	2,508	-	RFQ	Datenblatt	4524 J-Lead	Bulk	RW	Active	50 mOhms	±5%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
MC102821001J RES SMD 1K OHM 5% 1.5W 5025 Ohmite	2,221	-	RFQ	Datenblatt	Nonstandard	Bulk	Macrochip	Active	1 kOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
MC102822502J RES SMD 25K OHM 5% 1.5W 5025 Ohmite	3,186	-	RFQ	Datenblatt	Nonstandard	Bulk	Macrochip	Active	25 kOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
MC102821004J RES SMD 1M OHM 5% 1.5W 5025 Ohmite	3,267	-	RFQ	Datenblatt	Nonstandard	Bulk	Macrochip	Active	1 MOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
MC102821005J RES SMD 10M OHM 5% 1.5W 5025 Ohmite	2,776	-	RFQ	Datenblatt	Nonstandard	Bulk	Macrochip	Active	10 MOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
HVC4020V1005JET RES SMD 10M OHM 5% 1.5W 4020 Ohmite	3,239	-	RFQ	Datenblatt	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	10 MOhms	±5%	1.5W	Thick Film	High Voltage	±50ppm/°C	-55°C ~ 155°C	-	0.402 L x 0.201 W (10.20mm x 5.10mm)	0.031 (0.80mm)
